Parker Direction Valve D1SE83BNJW For General Hydraulic Applications

Parker Direction Valve D1SE83BNJW For General Hydraulic Applications
Parker Direction Valve D1SE83BNJW For General Hydraulic Applications Parker Direction Valve D1SE83BNJW For General Hydraulic Applications

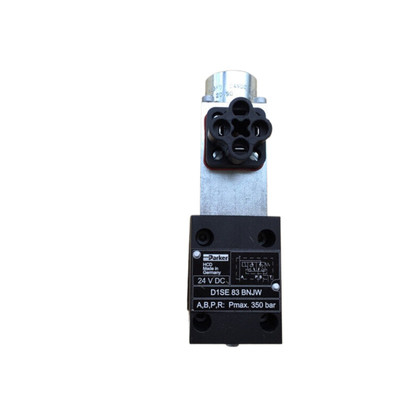

Large Image :  Parker Direction Valve D1SE83BNJW For General Hydraulic Applications

Product Details:
Place of Origin: German
Brand Name: Parker
Certification: cc
Model Number: D1SE83BNJW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now Chat Now

Parker Direction Valve D1SE83BNJW For General Hydraulic Applications

Description
Brand: Parker Model: D1SE83BNJW
Seal Material: NBR Mounting Type: Subplate
Input Voltage: 24 V DC Mounting Position: Unrestricted, Preferably Horizontal
Spool Code: 83 Flow Rate: 20 L/min
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

Parker Direction Valve D1SE83BNJW For General Hydraulic Applications
Product Specifications
Attribute Value
Brand Parker
Model D1SE83BNJW
Seal Material NBR
Mounting Type Subplate
Input Voltage 24 V DC
Mounting Position Unrestricted, Preferably Horizontal
Spool Code 83
Flow Rate 20 L/min
Product Overview
Parker's directional control valve series D1SE in size NG06 / CETOP 03 / NFPA D03 combines a robust valve design with the advantages of a seat valve. The valve poppet is almost leakage-free and enables safe switching even after longer standstill periods for reliable operation.
Key Features
  • Compact, proven design representing long-term experience in hydraulics - increases reliability
  • Robust all-steel design with hardened functional inner parts
  • Poppet and seat are grinded - practically no leakage
  • Short delivery time - no warehousing necessary
Applications
Suitable for general hydraulic applications, general presses, machine tools, injection molding, blow molding, and tire presses.
Technical Information

The directional control valve type D1SE is equipped with a wet pin armature solenoid, drain free tapered poppet. Due to the 3/2 way design, port A is either connected with P or discharged in the tank. The neutral position (solenoid not activated) is taken automatically by a return spring.

The valve poppet including activation lever and the armature of the solenoid are located in the pressurized oil chamber of connection T. The valve poppet is designed such that there can be no differential area in its axial operational direction (opening, closing). Thus it is statically pressure-balanced so that the valve can be switched in both flow directions even under pressure.

Additional Specifications
Operation Type Direct
Connection Type Connector as per EN 175301-803
Actuation Type Solenoid
Function 2-way
Port Connection NG06 / CETOP 03
Solenoid Connection Connector As Per EN 175301-803
Maximum Flow Rate 20 L/min
Maximum Operating Pressure 350 bar
