Rexroth Hydraulic Pump A10VSO18DFR/31R-PPA12N00 High Power Weight Ratio Strong Adaptability High Efficiency

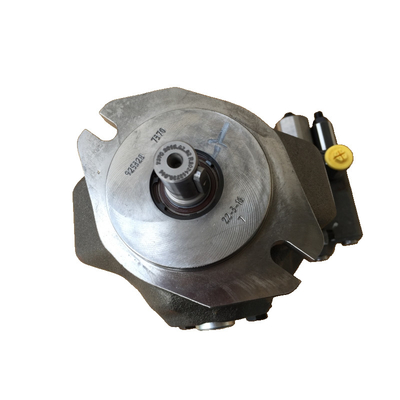

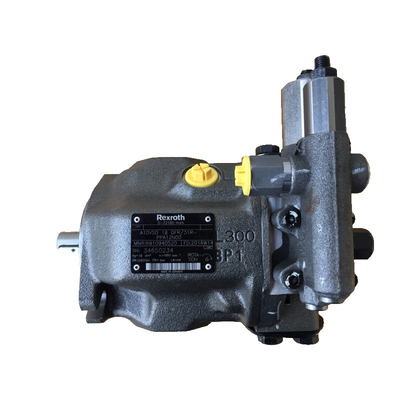

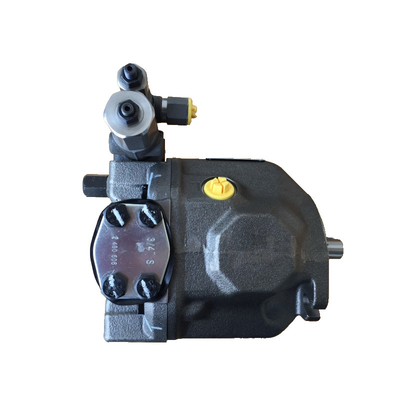

The Rexroth Hydraulic Pump A10VSO18DFR/31R-PPA12N00 is a high-performance axial piston variable displacement pump manufactured by Bosch Rexroth. Designed with a swash plate mechanism, this pump is engineered for open-loop hydrostatic transmission systems, offering exceptional efficiency and adaptability.

• Swash plate design: Enables stepless variable displacement through inclination angle adjustment

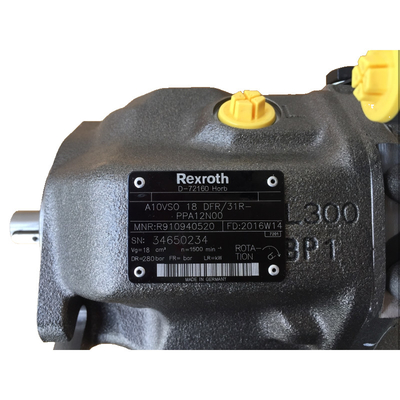

• Model specifications: A10VSO18DFR/31R indicates axial piston pump with 18ml/rev displacement
• Performance parameters: Maximum working pressure of 350bar, rated pressure 280bar
• Flow capacity: Up to 59l/min at maximum displacement and rated speed
• Speed range: Maximum rotation speed of 3300rpm

• Construction Equipment: Excavators, loaders for hydraulic cylinder and motor operation
• Manufacturing Machinery: Metal processing, plastic machinery, paper production equipment
• Marine Systems: Ship steering gear, anchor winches, and deck machinery
• Mining Operations: Crushers, screening machines, and mineral processing equipment
• Agricultural Machinery: Combine harvesters, tractors for hydraulic systems

• Energy Efficient: Flow proportional to drive speed with stepless variable adjustment
• Low Noise Operation: Advanced design minimizes operational sound levels
• Extended Service Life: Superior suction performance reduces cavitation
• Compact Design: High power-to-weight ratio for easy installation
• Versatile Configuration: Multiple control options with quick response times
• Universal Compatibility: ISO standard mounting flange and SAE metric connections
