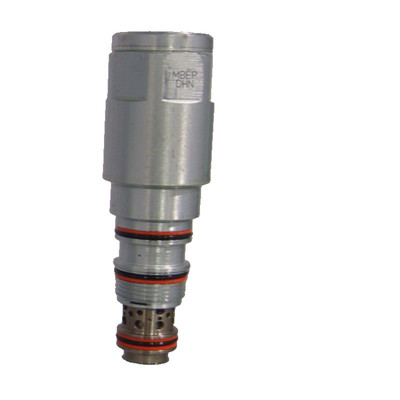

SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control

SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control
SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control

Large Image :  SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: MBEP-DHN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now Chat Now

SUN Cartridge Valve MBEP-DHN With LoadMatch Trade Control For Safe Load Control

Description
Brand: SUN Model: MBEP-DHN
Model Weight: 1.43 Lb. Valve Installation Torque: 45 - 50 Lbf Ft
Valve Hex Size: 1 3/8 In. Reseat: ≥77% Of Setting
Check Cracking Pressure: 25 Psi Maximum Valve Leakage At Reseat: 5 Drops/min.
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN Cartridge Valve MBEP-DHN With LoadMatch™ Control For Safe Load Control
Product Specifications
Attribute Value
Brand SUN
Model MBEP-DHN
Model Weight 1.43 lb.
Valve Installation Torque 45 - 50 lbf ft
Valve Hex Size 1 3/8 in.
Reseat ≥77% of setting
Check Cracking Pressure 25 psi
Maximum Valve Leakage at Reseat 5 drops/min.
Cavity T-2A
Series 2
Capacity 30 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 2 in³/min
Mounting Style Threaded or slip-in
Flow Rate 10 gpm
Product Features
  • Self-setting counterbalance valve combining multiple functions: reverse free flow, load, and thermal relief
  • Check allows free flow from directional valve (port 2) to load (port 1)
  • Direct-acting pilot function self-adjusts to approximately 1.3 times the load induced pressure
  • LoadMatch™ control dynamically adjusts valve setting in response to load pressure while maintaining fixed thermal relief setting
  • Lower pilot pressures required compared to similar counterbalance valves
  • Integral bypass damper enables rapid adjustment to increasing load pressures for safe control
  • Physically interchangeable with other 3-port counterbalance, load control, and pilot-to-open check cartridges
  • Modulates as a spool valve while seating as a poppet valve for optimal performance
  • Capable of modulating over a broader range of flows than pure poppet designs
  • Uni-directional damping device smooths opening and allows quick closing
Note: This valve has a larger hex size than typical for its cavity. Special consideration should be given in existing applications.
