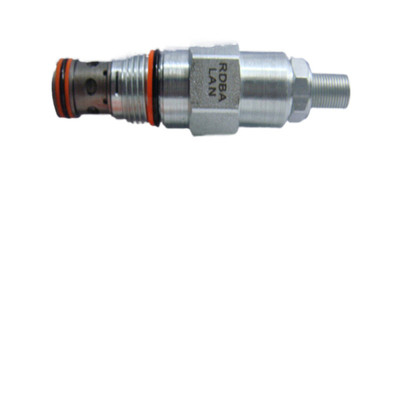

SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance

Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise.

These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast. Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed. The setting procedure is: check the setting, remove the pressure, adjust the valve, check the new setting. Valve is relatively insensitive to varying oil temperatures and oil borne contamination.

Select a spring range where the desired relief setting is approximately mid-range to high between the minimum and maximum pressure to ensure maximum valve repeatability. Suitable for use in load holding applications. Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.

Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
