Rexroth Hydraulic Pump A4VSO40DR/10R-PPB13N00 Long-Life Design Fast Response Modular Design Material

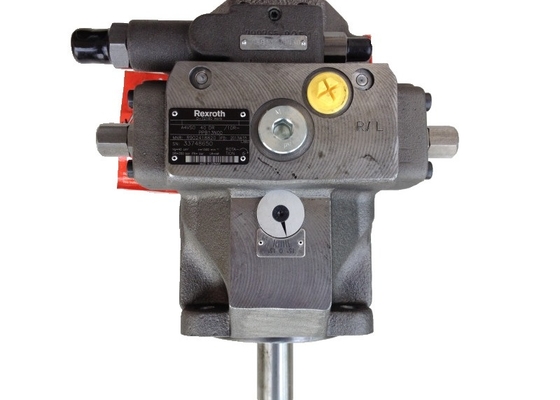

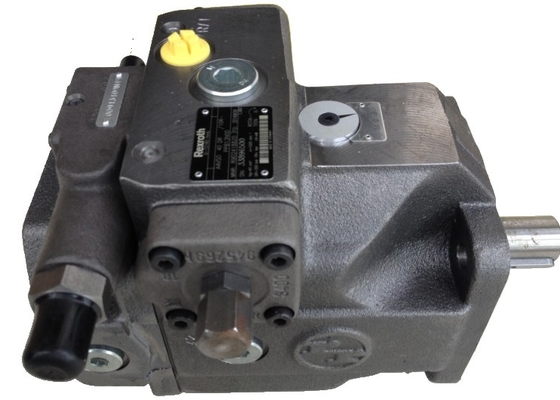

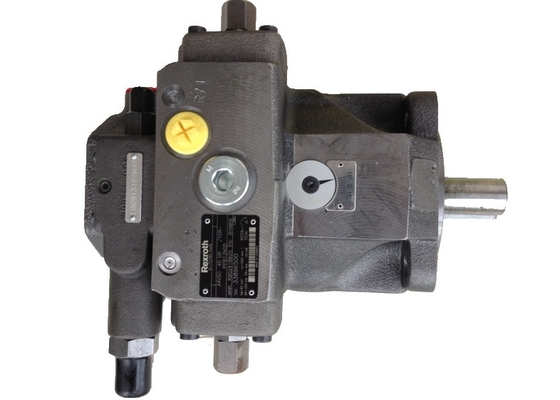

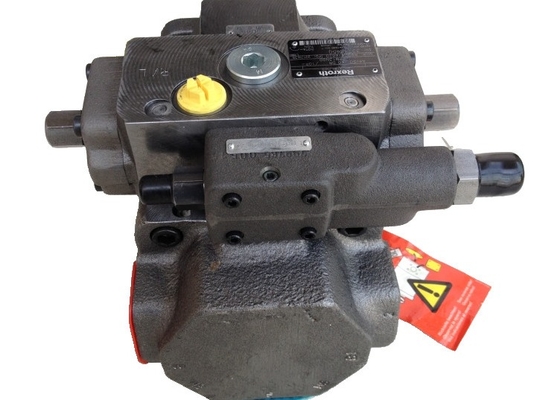

Rexroth Hydraulic Pump A4VSO40DR/10R-PPB13N00 is a high-performance axial piston variable displacement pump produced by Bosch Rexroth. It adopts a swash plate design and is suitable for open-circuit hydrostatic drive systems. The flow rate of the pump is proportional to the drive speed and displacement, and the flow rate can be adjusted steplessly by adjusting the swash plate angle. It is rugged, low-noise, has a short response time, and has excellent oil suction performance.

In terms of technical parameters, the maximum displacement of A4VSO40DR/10R-PPB13N00 is 40 cm³/rev, the nominal pressure is 350 bar, and the maximum pressure can reach 400 bar. Its maximum speed is 2600 rpm, and the maximum power is 61 kW at the maximum displacement and nominal pressure.

• Industrial machinery: such as injection molding machines, die-casting machines, etc., used to accurately control the pressure and flow of hydraulic systems to ensure the stable operation of the machinery.
• Construction machinery: such as excavators, loaders, etc., provide power for the hydraulic system to support the complex movements of the equipment.
• Mining machinery: During the mining process, it provides reliable hydraulic power for crushers, loaders and other equipment.
• Marine machinery: Used in the hydraulic system of ships, such as steering gear, anchor winch, etc., to ensure the control performance of the ship.
• Engineering machinery: such as cranes, forklifts, etc., provide efficient power support for the hydraulic system of the equipment.
• Machine tool control: In CNC machine tools, it is used to control the pressure and flow of the hydraulic system and improve the processing accuracy.

In addition, the pump can also be used in water treatment, industrial automation and other fields to provide power support for various equipment that requires precise hydraulic control.

• High efficiency and energy saving: A4VSO40DR/10R-PPB13N00 adopts an advanced swash plate design, which can adjust the flow rate steplessly according to actual needs, thereby achieving efficient energy conversion and utilization.
• Long-life design: The pump uses specially designed long-life, high-precision aviation-grade full roller bearings that can withstand high-load operation and ensure the stability and durability of the pump.
• Low-noise operation: During operation, the A4VSO40DR/10R-PPB13N00 can maintain a low noise level, which is particularly important for industrial applications that require a quiet environment.
• Excellent oil suction performance: The pump has excellent oil suction characteristics and can operate normally under low oil pressure conditions, reducing system failures caused by insufficient oil suction.
• Fast response: The A4VSO40DR/10R-PPB13N00 has a sensitive control response and can quickly adapt to changes in system pressure and flow.
• Modular design: The pump adopts a modular design and can be flexibly configured according to different application requirements.
• Multiple control methods: A4VSO40DR/10R-PPB13N00 provides a variety of control methods, including constant pressure control, constant power control, electrical proportional control, etc.

• Brand Rexroth
• Model A4VSO40DR/10R-PPB13N00
• Color Grey
• Place of Origin Germany
• Material Cast Iron
• Power Source Electric
