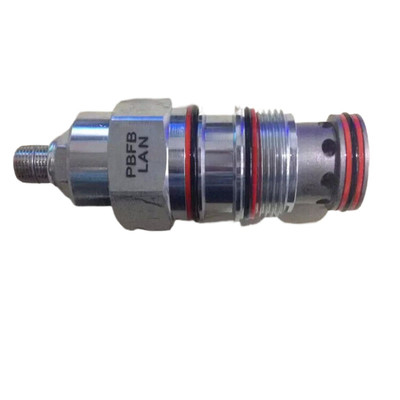

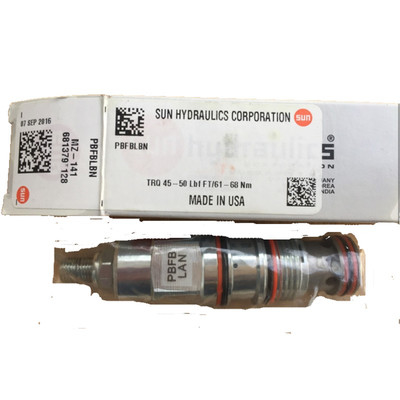

SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure

SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure
SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure

Large Image :  SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: PBFB-LAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure

Description
Brand: SUN Model: PBFB-LAN
Model Weight: 0.64 Lb. Locknut Torque: 80 - 90 Lbf In.
Locknut Hex Size: 9/16 In. Adjustment Screw Internal Hex Size: 5/32 In.
Valve Installation Torque: 45 - 50 Lbf Ft Valve Hex Size: 7/8 In.
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure
Product Specifications
Attribute Value
Brand SUN
Model PBFB-LAN
Model Weight 0.64 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 9/16 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 45 - 50 lbf ft
Valve Hex Size 7/8 in.
Product Description

The SUN PBFB-LAN is a pilot-operated pressure reducing valve designed to maintain constant reduced pressure in hydraulic systems with multiple pressure requirements. This high-performance valve features:

  • Reduces high primary pressure at inlet (port 2) to constant reduced pressure at port 1
  • Main stage orifice protected by 150 micron stainless steel screen
  • Sun floating style construction minimizes internal parts binding
  • Exceptionally flat pressure/flow characteristics with low hysteresis
  • EPDM seals available for phosphate ester fluid systems

Technical Specifications:

  • Cavity: T-2A
  • Series: 2
  • Capacity: 20 gpm
  • Maximum Operating Pressure: 5000 psi
  • Control Pilot Flow: 10 - 15 in³/min.
  • Adjustment: 5
  • Valve Hex Size: 1 1/8 in.
SUN Overflow Valve PBFB-LAN With Overflow Valve Pilot Operated For Multiple Pressure 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can ship worldwide. We can arrange shipping if you don't have your own forwarder.
What are your payment terms?
We accept T/T, LC at sight, and 100% full payment.
What is your production lead time?
Typically 15 days for MOQ quantities, depending on product and order size.
When can I get a quotation?
We provide quotes within 24 hours of receiving your inquiry. For urgent requests, please notify us.
