Hydraulic System Rexroth Proportional Valve M-3SEW6C38 420MG24N9K4

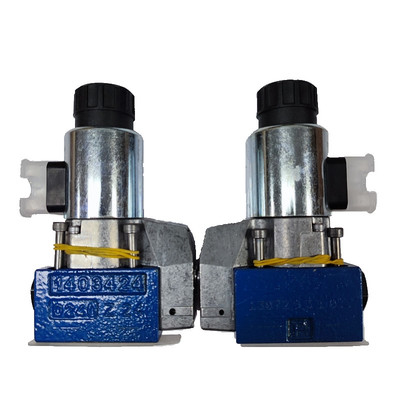

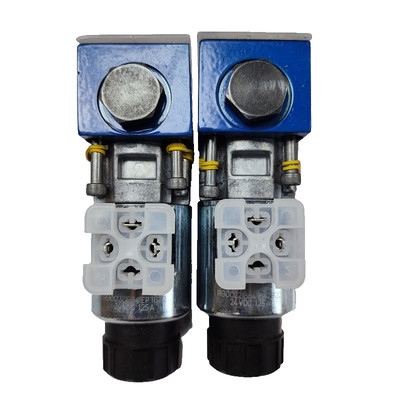

The Bosch Rexroth M-3SEW6C3X/420MG24N9K4 (R900566273) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction in accordance with its spool symbol C.

This direct-actuated seat valve features:

• Solenoid actuation with maximum operating pressure of 350 bar
• Maximum flow capacity of 60 l/min
• Concealed manual override and auxiliary actuation
• Durable housing with hardened valve system
• Pressure compensation between sealing elements
• Negative spool overlap (port T must always be connected)

Compatible with hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The electrical connection uses a Connector pole PE according to EN standards.

Key technical specifications:

• Spool symbol: Symbol C
• Max. pressure: 420 bar
• Number of ports: 3
• Type of actuation: Solenoid actuation
• Size: 6
• Electrical connector: 3-pole (2 + PE)
• Max. flow: 25 l/min
