Rexroth Pressure Switch HED8OH-20 350K14 Experience Precise Pressure Monitoring

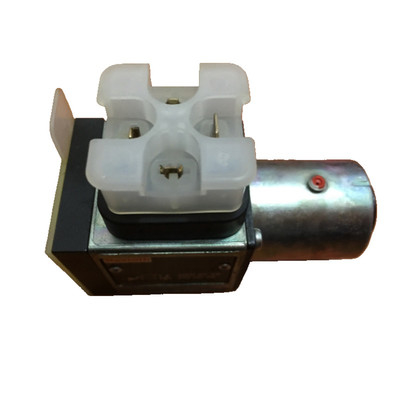

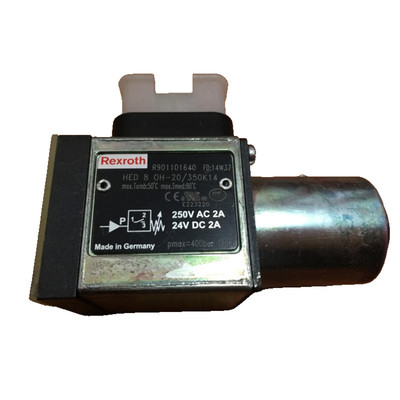

The Bosch Rexroth HED 8 OH-2X/350K14 (R901101640) is a high-quality piston type hydraulic pressure switch designed for precise monitoring and control of pressure in hydraulic systems. Its robust construction features:

• Micro switch with NC/NO contact function for potential-free switching (mA to 0.5A)
• Minimal hysteresis with high repetition accuracy (<1% of set pressure)
• NBR seals compatible with HL, HLP, HLPD, HVLP, and HVLPD hydraulic fluids
• ISO standard flange connection for subplate mounting or pipeline installation
• Multiple adjustment types including spindles with/without protective caps and lockable rotary knobs
• DIN EN large cubic connector (mating connector not included)
• Wide operating voltage range: 24-240 V AC/DC
• Certifications: CE, CCC, UL, and RoHS compliant
• Maximum operating pressure: 350 bar with adjustable ratings (50-315 bar)
• Compact weight: approximately 0.60 kg

For optimal performance and longevity, install in environments with minimal vibrations and protection from hydraulic shocks. This UL-recognized component is suitable for pressure ranges up to 315 bar.
