Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure

Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure
Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure

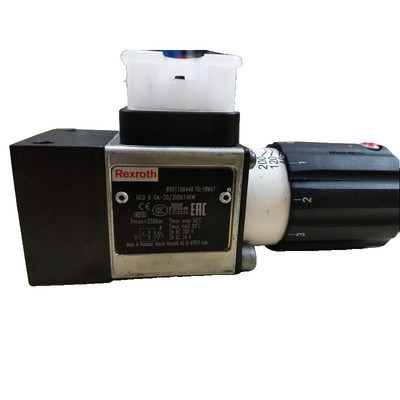

Large Image :  Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: HED8OA-20 200K14KW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure

Description
Brand: Rexroth Model: HED8OA-20 200K14KW
Max. Pressure: 200 Electrical Connection Description: Connector 4-pole (3 + PE) According To EN 175301-803
Productgroup ID: 9,10,11,12,13,14 Conformity Description: CE – According To Low-Voltage Directive 2014/35/EU
Electrical Connector: Connector 4-pole (3 + PE) Type Of Connection: Pipeline
Highlight:

HED8OA-20 200K14KW

,

200K14KW Pressure Switch

,

HED8OA-20 Pressure Switch

Rexroth Pressure Switch HED8OA-20 200K14KW

Precision-engineered piston type pressure switch with maximum operating pressure of 200 bar, designed for versatile hydraulic applications.

Key Specifications
Brand Rexroth
Model HED8OA-20 200K14KW
Max. Pressure 200 bar
Electrical Connection Connector 4-pole (3 + PE) according to EN 175301-803
Connection Type Pipeline
Conformity CE – according to Low-Voltage Directive 2014/35/EU
Product Features
  • Precision pressure switch with potential-free switching capability (0.5 amps max)
  • Micro switch with normally closed (NC) and normally open (NO) contact functions
  • NBR seals compatible with HL, HLP, HLPD, HVLP, and HVLPD hydraulic fluids
  • High repetition accuracy (<1% of set pressure value) with minimal hysteresis
  • Adjustable via rotary knob with integrated scale for precise pressure setting
  • Maximum operating pressure of 315 bar with various pressure ratings available
  • CE, CCC, UL, and RoHS compliant for international standards
  • Pipeline installation or subplate mounting/flange connection options
  • DIN EN large cubic electrical connector (mating connector not included)
Technical Specifications

Connection: Internal thread G1/4

Supply Voltage: 12-250 V AC/DC

Weight: 0.8462 kg

Output Signal: Micro switch with NC/NO contact function

Rexroth Pressure Switch HED8OA-20 200K14KW Maximum Operating Pressure 200 Max. Pressure 0
