Rexroth Pressure Switch HED8OA-20 200K14 Precision Monitoring And Control

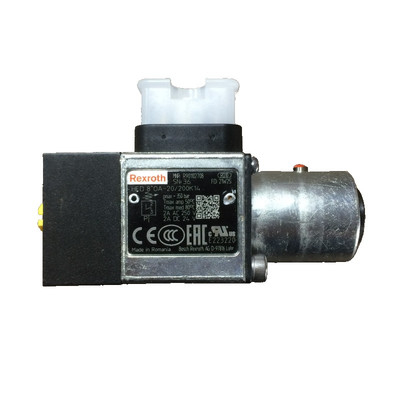

The Bosch Rexroth HED 8 OA-2X/200K14 (R901102708) is a high-performance piston type hydraulic pressure switch designed for precision monitoring and control of hydraulic system pressures. This robust device ensures reliable operation with its potential-free micro switch that can handle currents ranging from mA to 0.5A, making it versatile for various electrical applications.

The switch features a small hysteresis and boasts high repetition accuracy of less than 1% of the set pressure, ensuring consistent performance. The HED 8 OA-2X/200K14 is equipped with NBR seals suitable for hydraulic fluids such as HL, HLP, HLPD, HVLP, and HVLPD.

Key features include:

• Maximum operating pressure up to 315 bar
• Available pressure ratings: 50, 100, 200, and 315 bar
• Adjustment via spindle with internal hexagon for precise setting

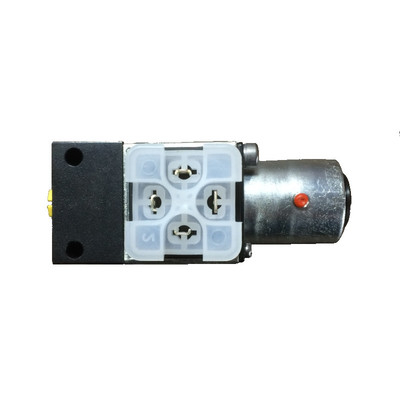

• Large cubic connector conforming to DIN EN standards
• Supply voltage range: 24 to 240 V AC/DC
• CE marked and conforms to international standards including CCC, UL, and RoHS
