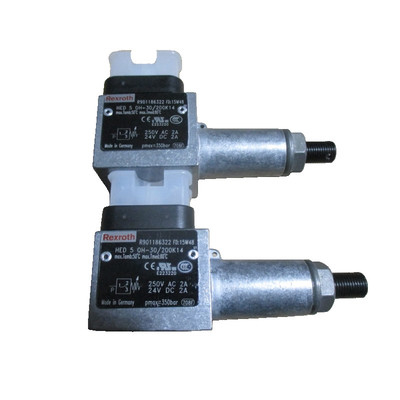

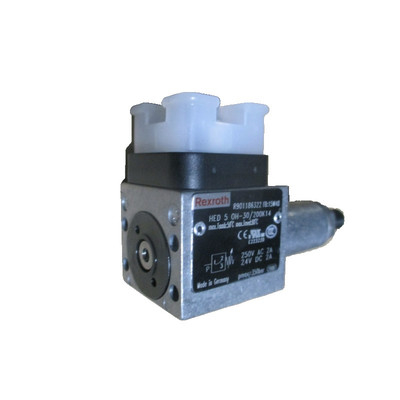

Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy

Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy
Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy

Large Image :  Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: HED5OH-30 200K14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy

Description
Brand: Rexroth Model: HED5OH-30 200K14
Max. Pressure: 350 Electrical Connection Description: Connector 4-pole (3 + PE) According To EN 175301-803
Productgroup ID: 9,10,11,12,13,14 Conformity Description: CE – According To Low-Voltage Directive 2014/35/EU
Electrical Connector: Connector 4-pole (3 + PE) Connection Diagram: Flange Connection
Highlight:

HED5OH-30 200K14 Pressure Switch

,

High Accuracy Rexroth Pressure Switch

Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy
Product Overview

The Bosch Rexroth HED 5 OH-3X/200K14 (R901186322) is a high-precision hydraulic pressure switch designed for reliable monitoring and control of pressure in hydraulic systems. This piston-type pressure switch features a micro switch with normally closed (NC) and normally open (NO) contact functions, allowing for potential-free switching of currents ranging from milliamps to 0.5 amps.

Key Features
  • Small hysteresis ensures accuracy within 1% of set pressure
  • High repetition accuracy for consistent performance
  • NBR seal for reliable operation
  • Flange connection type
  • Maximum pressure rating of 315 bar
  • 3-pole+PE connector according to DIN EN standards
  • Compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC
  • Supply voltage range: 24 to 240 V AC/DC
  • Conforms to CE, CCC, and UL standards
Technical Specifications
Attribute Value
Brand Rexroth
Model HED5OH-30 200K14
Max. pressure 350
Electrical connection Connector 4-pole (3 + PE) according to EN 175301-803
Productgroup ID 9,10,11,12,13,14
Conformity CE – according to Low-Voltage Directive 2014/35/EU
Electrical connector Connector 4-pole (3 + PE)
Connection diagram Flange connection
Weight 0.234 kg
Seals NBR
Rexroth Pressure Switch HED5OH-30 200K14 Small Hysteresis High Accuracy 0
Installation & Usage Recommendations

For optimal performance and longevity, install the pressure switch in an environment with minimal vibration and protect against hydraulic pressure surges. This component belongs to series X which signifies its status within Bosch Rexroth's product hierarchy as offering advanced functionality and reliability for industrial applications requiring precise pressure monitoring solutions.
