Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original

Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original
Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original

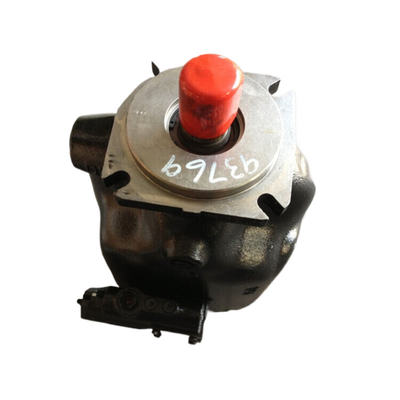

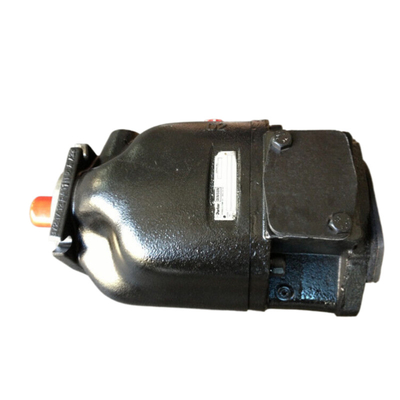

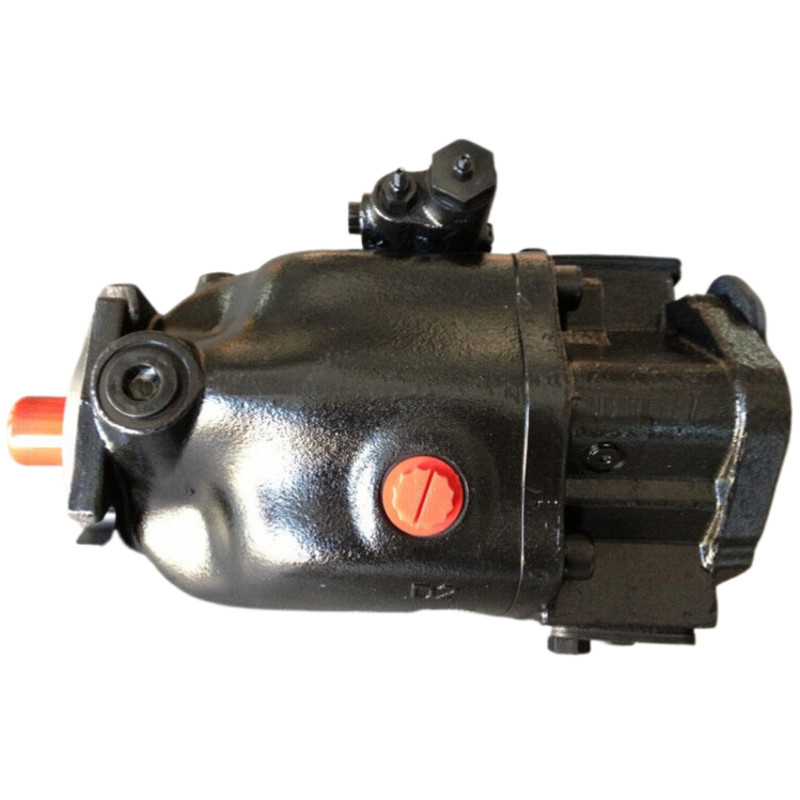

Large Image :  Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original

Product Details:
Place of Origin: America
Brand Name: Parker
Certification: cc
Model Number: PD100AM286492
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Parker PD100AM286492 Piston Pump ‌High Reliability High Precision New Original

Description
Outlet Size: 1 Inch Pressure: High Pressure, High Pressure
Pressure Sensing Element: Diaphragm Structure: Axial Piston Pump
Lead Time: In Stock Sample Order: Accpect
Suction Height: 0.6M Direction Of Rotation: Clockwise Rotation
Highlight:

Parker PD100AM286492 Piston Pump

,

PD100AM286492 High Precision Pump

,

Original Piston Pump

Parker PD100AM286492 Piston Pump - High Reliability High Precision New Original
Product Specifications
Outlet Size 1 inch
Pressure High Pressure
Pressure Sensing Element Diaphragm
Structure Axial piston pump
Lead Time In stock
Sample Order Accepted
Suction Height 0.6M
Direction Of Rotation Clockwise rotation
Product Features
High-Pressure and High-Efficiency Performance
  • Rated working pressure: 350bar with peak pressure exceeding 400bar
  • Energy efficient: Inclined disc variable design reduces energy consumption by over 30%
Precision Control and Low Pulsation
  • 9 plunger structure: Flow pulsation <±1.5% for stable output
  • Fast response: Variable response time ≤50ms
High Reliability Design
  • Wear-resistant structure: Extends life to 1.4 times that of ordinary pumps
  • Impact resistance: FEM optimized cast iron housing with reinforced bearings
Intelligence and Modularity
  • Multiple control options: Power regulator, pressure cut-off modules
  • Through-shaft drive: Supports tandem gear pumps or vane pumps
Environmental Adaptability
  • Wide temperature range: Stable operation from -25℃ to +70℃
  • Low noise: 15dB(A) lower than conventional pumps
Usage Guidelines
Oil Management
  • Cleanliness requirements: Oil must reach NAS1638 level 7 (ISO 16/13)
  • Temperature control: Continuous operation ≤60℃, short-term peak ≤80℃
Mechanical Installation
  • Oil drain port: Must be installed upward with pipeline back pressure <0.2MPa
  • Alignment: Coupling deviation ≤0.1mm to avoid bearing damage
Technical Specifications
Product Type Hydraulic Pump
Motor Type Piston pump
Minimum Operating Pressure 0 bar
Max Flow 3L/m
Mounting F:Flange Mtg
Maximum Operating Temperature 100°C
