Rexroth Oil Cylinder CDT3MX3/63/28/40F11/B11HHDTWW Blue Precise Control High Performance

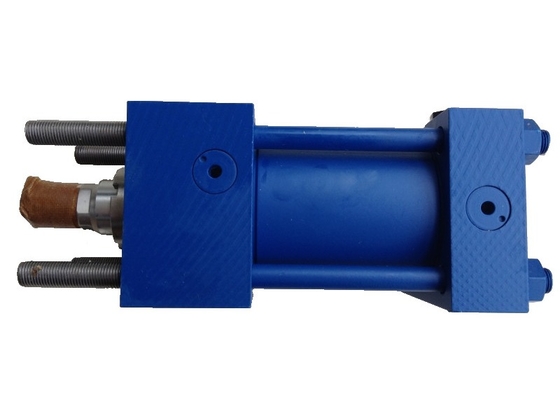

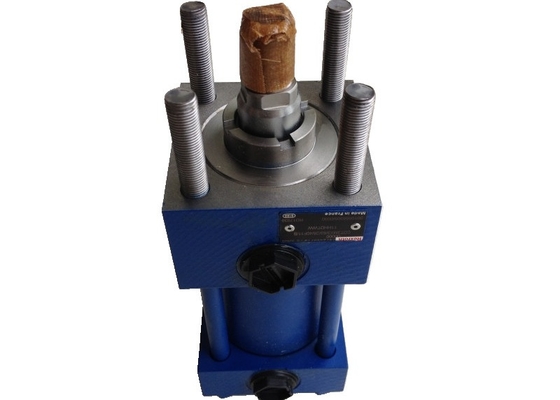

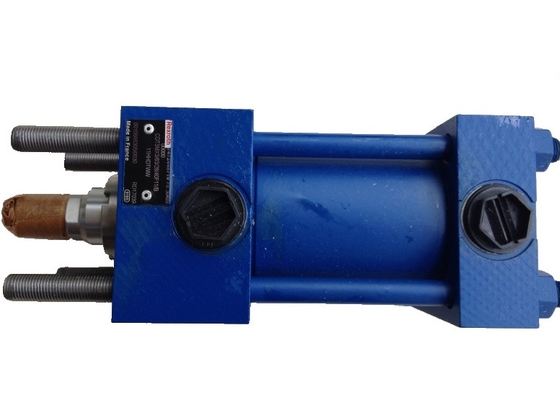

The Rexroth CDT3MX3/63/28/40F11/B11HHDTWW is a high-performance hydraulic cylinder for engineering applications manufactured by Bosch Rexroth, a German company. It belongs to the CDT3 series of hydraulic cylinders and features an axial foot-mounted installation configuration.

Primary technical specifications: Piston diameter: 63 mm, Piston rod diameter: 28 mm, Stroke: 40 mm. Maximum operating pressure: 210 bar (static load). Installation conforms to ISO 6020-2, DIN 24554, and NF/ISO 6020-2 standards.

• Machine manufacturing: Used for feed, clamping, and other operations in machine tools
• Metal processing: Used in stamping, forging, and other equipment
• Plastic molding: Used in injection molding machines, die-casting machines
• Construction machinery: Used in hydraulic systems of cranes and excavators
• Automated production lines: Used for material handling and robotic arm control
• Paper and printing industry: Used for tension control in processing equipment
• Automotive manufacturing: Used for high-precision positioning and clamping

• High reliability: Durable construction for high loads and frequent use
• Precise control: Multiple mounting options and stable operation
• Easy maintenance: Integrated guide sleeves and safety exhaust valve
• High adaptability: Compatible with various hydraulic oils and viscosities
• High performance: Optimized internal structure reduces energy loss
