Aventics R928028409 WE-1SP-M12X1 Pneumatic Components Made Of Cast Iron Fast Shipping TT Payment Standard Size Local Service Available

Technical Specifications

• Material Number: R928028409
• Brand: Bosch Rexroth (Aventics)
• Type: Electronic Switching Element
• Model: WE-1SP-M12X1
• Signal Type: Switching
• Switching Points: 1

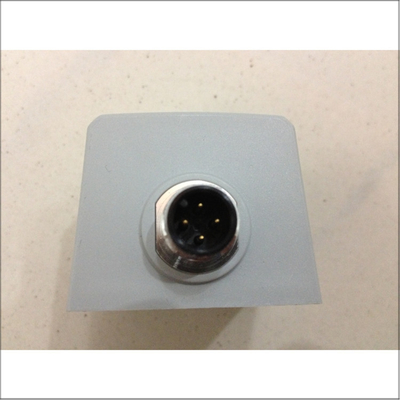

• Connection: M12x1, 4-pole round plug-in connection
• Weight: 0.1 kg (0.22 lbs)
• Operating Voltage: 24 VDC
• Operating Temperature: -25°C to +85°C (-13°F to +185°F)
• Protection Rating: IP65
• LED Indicators: No LED indicators
• Switching Type: Normally Open (NO) at 75% signal, Normally Closed (NC) at 100% signal
• Maximum Switching Power: 20 W (70 VA) with resistive load
• Maximum Switching Current: 1 A (DC), 150 mA (AC)
• Maximum Switching Voltage: 10 V to 30 V (DC), 250 V (AC)

Applications

• Hydraulic Systems: For precise control and monitoring of hydraulic systems.
• Automation Systems: For monitoring and control in industrial automation.
• Machine Tools: For precise control in machine tool applications.
• Plastic Machinery: For precise control in injection molding machines.
• Food and Packaging: For precise control in food processing and packaging machinery.
