Product Description:

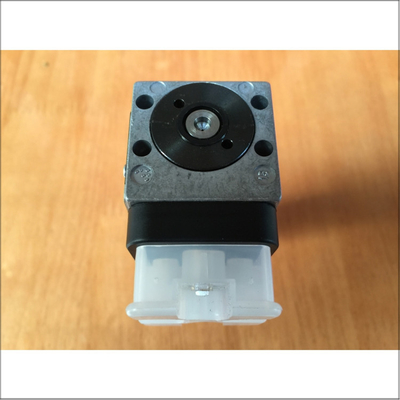

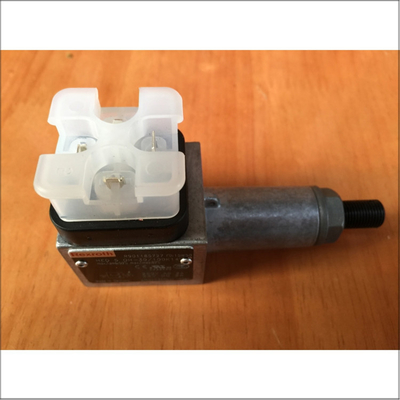

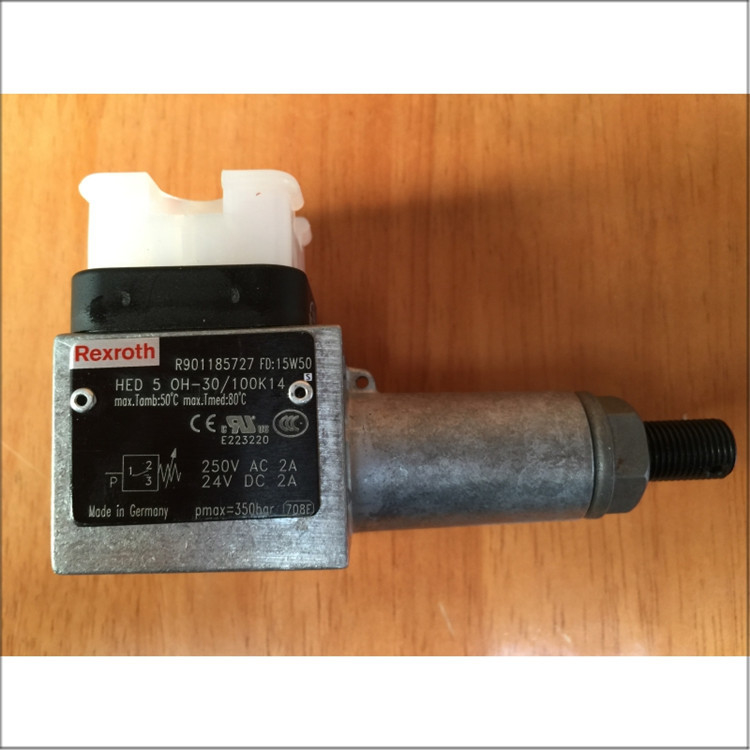

Rexroth pressure relays (such as the HED8OA-20/350K14), as core components for hydraulic-to-electrical conversion, offer the following advantages, features, and precautions for use:
Advantages
High Precision and Stability: Rexroth pressure relays utilize a precision mechanical structure, offering a wide pressure regulation range (e.g., 350 bar), high sensitivity, short actuation times (fast rise/fall times), and high repeatability.
Reliability and Durability: Products undergo rigorous testing, and sealing materials (such as NBR/FKM) are suitable for various operating conditions. They withstand high temperatures and high pressures, ensuring a long service life.
Standardized Design: Electrical connections comply with DIN EN 175301-803, ensuring easy installation and strong compatibility.
Diverse Functions: They can be used for safety protection, pump start/stop control, and sequence control, including hydraulic cylinder pressure control and pump unloading protection.
Precautions for Use
Correct Installation Location: Install in locations with significant pressure fluctuations (e.g., in the oil inlet line). Avoid installation in the oil return line, which could result in activation failure.
Regular Maintenance: Check key components such as seals and pressure taps to prevent oil leaks and pressure measurement errors.
Matching: Select the model corresponding to the system pressure level (e.g., 350 bar corresponds to 350K) to avoid malfunctions due to pressure range mismatches.
Environmental Compatibility: Special sealing materials (such as FKM) may be required for high-temperature or corrosive environments.
It is recommended to prioritize genuine products to avoid performance instability due to component quality variations.
| Endurance Test Cycle |
100,000 times |
| Media Compatibility |
Air, Gas, Liquid |
| Mounting Type |
DIN Rail |
| Valve Size |
1/4 inch |
| Adjustment Pressure Range |
4 to 20psi |
| Pressure Sensing Element |
Diaphragm |
| Quality |
OEM |
| System Pressure |
300PSI (2.07MPa) |
| Measurement Range |
(-0.1~160)MPa,(0~50)KPa |
| Medium |
liquid ,gas |
